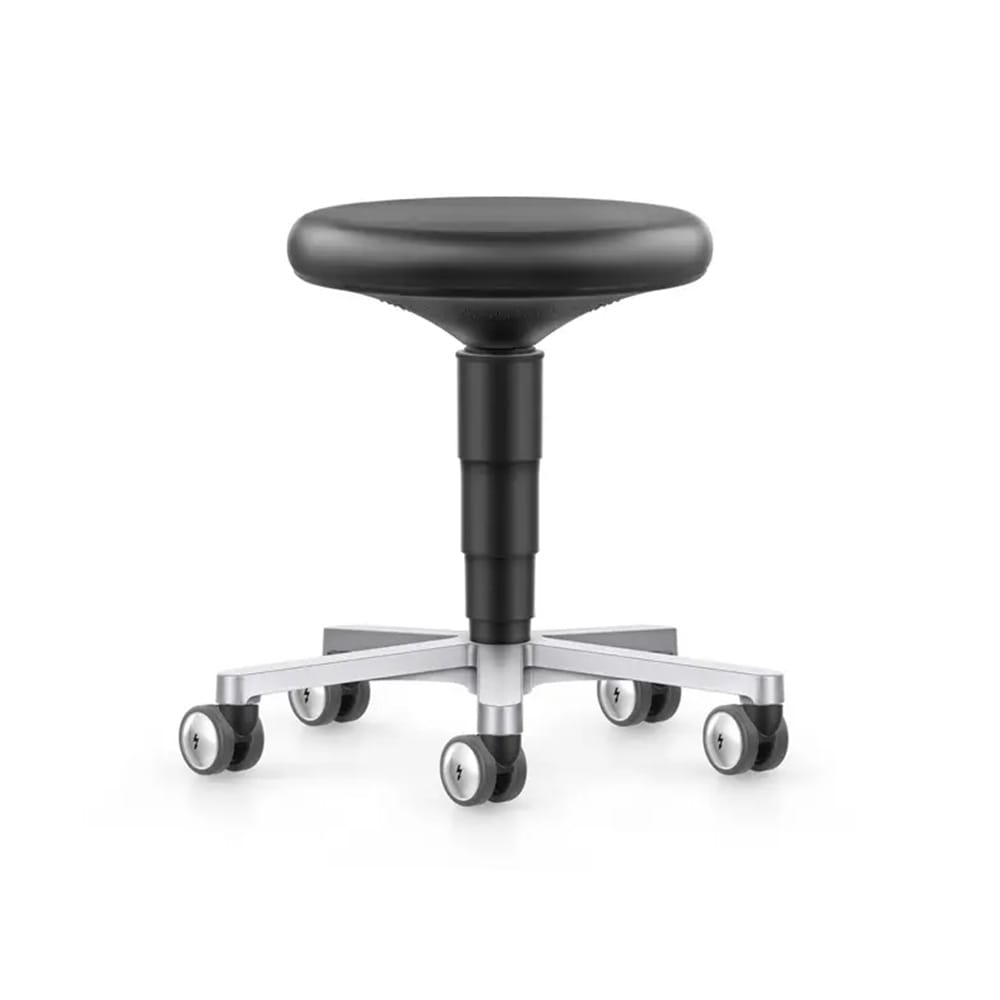

Cleanroom Stool Configurable: Seat Height & Castors
Cleanroom stool, Tested Device seal, conductive acc. to EN 61340-5-1, extra large 400 mm seat. Choose castors, glides with foot ring, or foot release.
| Weight | N/A |
|---|---|
| Manufacturer | Bimos |
| Order unit / Packing unit | PCE / PCE |
Description
Cleanroom Stool for Flexible, ESD Safe Seating in Cleanroom Environments
The Cleanroom Stool is designed for cleanroom workplaces where flexibility and mobility are required. It carries the Tested Device seal of approval for use in cleanrooms, with sealed upholstery using back foaming technology and smooth, sealed surfaces that reliably avoid particle emissions. It is conductive according to DIN EN 61340-5-1, with a typical discharge resistance of 10 to the 6th Ohm, achieved through volume conductive plastics and aluminium parts with a conductive coating.
Three Versions: Castors, Glides with Foot Ring, or Foot Release
The Cleanroom Stool is available in three versions. The base version, order code 9463R, has castors, ring release and a seat height range of 450 to 650 mm. The version with foot ring, order code 9461R, has glides, ring release and a chrome plated, height adjustable foot ring, with a higher seat range of 560 to 830 mm. The version with foot release, order code 9F63R, has castors and a foot operated seat height adjustment, particularly easy and hygienic, with a seat range of 480 to 650 mm.
Softcover for Particle Free Cleanroom Use
A soft cover beneath the seating surface conceals the ring release and the mechanics, preventing any particles from being released. Dust does not build up, and cleaning is simple and efficient.
Extra Large, Comfortable Seat
The seat is extra large, with a diameter of 400 mm, and features extra thick, soft comfort padding of 60 mm. This automatically promotes correct posture and upright, healthy sitting, and the rounded front edge of the seat prevents possible blood congestion in the thighs.
Upholstery
The Cleanroom Stool is upholstered in Magic artificial leather, black, PVC free, quick to clean and resistant to commercially available disinfectants. The upholstery is sealed with back foaming technology, specifically suited to cleanroom requirements.
Base and Castors
The base is an extra small aluminium base, 540 mm in diameter, keeping the footprint compact while leaving legroom free, fitted with cleanroom castors or glides depending on version, soft and load dependent braked, for hard floors.
Build Quality and Warranty
The Cleanroom Stool has a net weight of 7.0 kg on the castors version and 9.0 kg on the foot ring version. All materials used are recyclable by type. Every Cleanroom Stool is backed by a 10 year long term warranty, with free shipping of replacement parts throughout the entire period.
Certifications and Standards
The Cleanroom Stool complies with EN 61340-5-1 for electrostatic discharge protection and DIN 68877, and carries the Tested Device seal for cleanroom use. It also carries the GS certificate for tested safety, is produced under DIN EN ISO 9001 quality management and DIN EN ISO 14001 environmental management, holds EMAS certified environmental management and OHSAS 45001 occupational health and safety management, and has an EcoVadis CSR rating of Gold.
Browse all ESD Chairs in our catalog, or use the Ask about product tab for a tailored offer.
Technical specification
| MODEL | 9463R → | 9461R → | 9F63R → |
|---|---|---|---|
| SEAT HEIGHT | 450-650 mm (stepless) | 560-830 mm (stepless) | 480-650 mm (stepless, foot release) |
| SEAT DIAMETER | 400 mm | 400 mm | 400 mm |
| CUSHION PADDING | 60 mm | 60 mm | 60 mm |
| HEIGHT ADJUSTMENT | Ring release | Ring release | Foot release |
| SOFTCOVER | Yes, conceals mechanics | Yes, conceals mechanics | Yes, conceals mechanics |
| BASE DIAMETER | 540 mm | 540 mm | 540 mm |
| BASE MATERIAL | Aluminium, polished | Aluminium, polished | Aluminium, polished |
| CASTORS / GLIDES | Cleanroom castors | Glides + foot ring | Cleanroom castors |
| CLEANROOM SUITABILITY | Tested Device seal, sealed upholstery, back foaming technology | Tested Device seal, sealed upholstery, back foaming technology | Tested Device seal, sealed upholstery, back foaming technology |
| ESD COMPLIANCE | EN 61340-5-1, typical discharge resistance 10⁶ Ohm | EN 61340-5-1, typical discharge resistance 10⁶ Ohm | EN 61340-5-1, typical discharge resistance 10⁶ Ohm |
| COUNTRY OF ORIGIN | Germany | Germany | Germany |
| MANUFACTURER (LEGAL) | bimos, a brand of Interstuhl Büromöbel GmbH & Co.KG | bimos, a brand of Interstuhl Büromöbel GmbH & Co.KG | bimos, a brand of Interstuhl Büromöbel GmbH & Co.KG |
| WARRANTY | 10 years | 10 years | 10 years |
| NET WEIGHT | 7.0 kg | 9.0 kg | 7.0 kg |
| ORDER UNIT / PACKING UNIT | PCE / PCE (1 pc per package) | PCE / PCE (1 pc per package) | PCE / PCE (1 pc per package) |
| DOWNLOAD PRODUCT SHEETS | Brochure ↓Operating instructions ↓Technical data sheet (low) ↓Technical data sheet (high) ↓Tested Device for Cleanroom ↓Tested for ESD ↓ | ||
