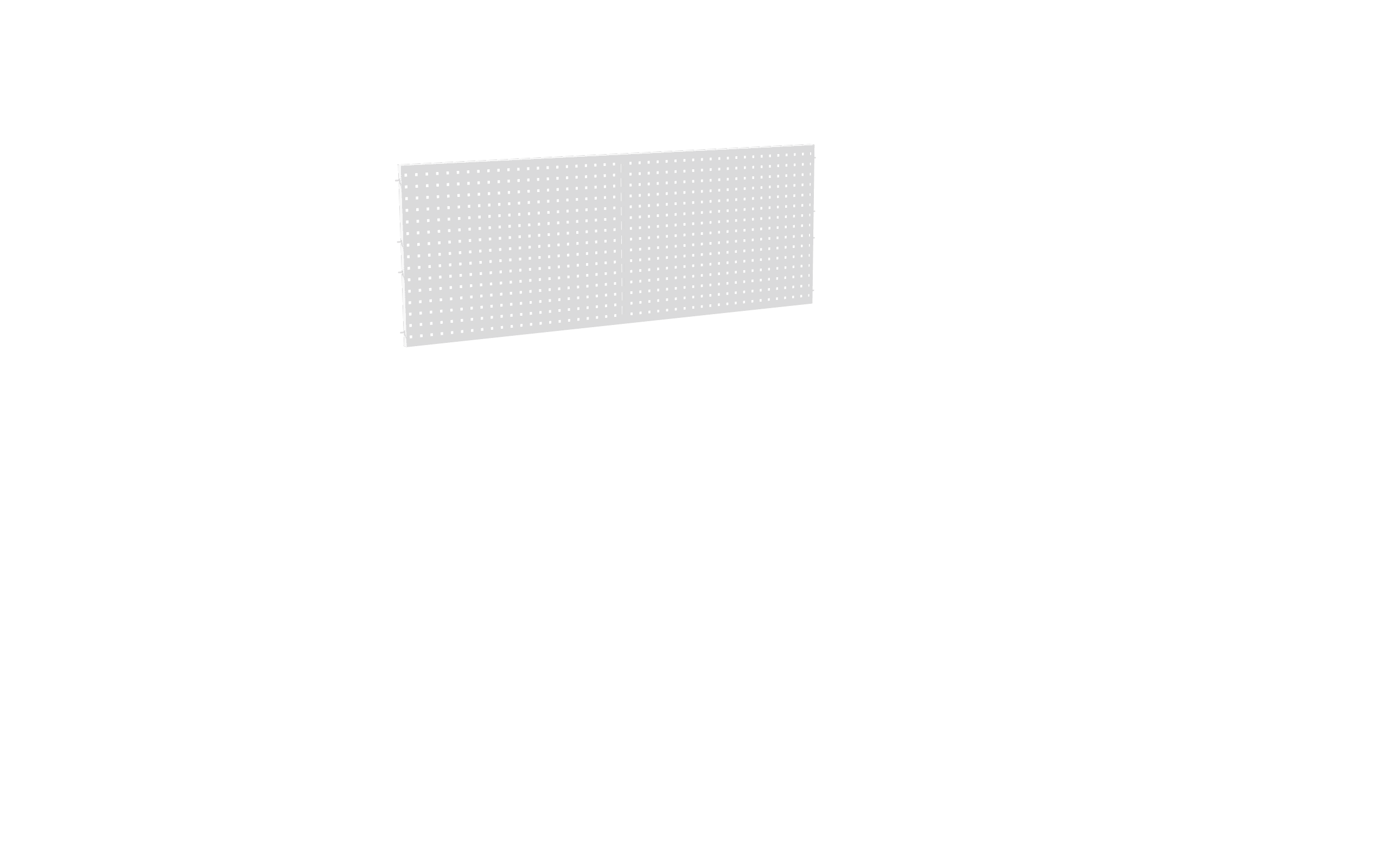

ESD Full Width High Perforated Panel – 180 mm

ESD full width high perforated panel. Width 1700 mm, height 598 mm. Hole 10×10 mm, raster 38 mm. For 180 mm workstation. Max load 25 kg/m².

Code
Manufacturer
Weight (kg)8.7
Width (mm)1700
Height (mm)598
Max Load (kg)25
Height Adjustment Range (mm)Manual 50 mm step
Sheet Thickness (mm)1
MaterialConstruction Steel
ColorRAL 7035 (Light Grey), RAL 9005 (Black)
ESDYES
Ask about price
SKU: RT-PP/ESD/180/60 Category:
Description

The ESD Full Width High Perforated Panel is a versatile workstation accessory providing a mounting surface for tools, holders, and organizational accessories. The 10×10 mm perforations with 38 mm raster allow flexible positioning of hanging accessories.

Made from 1 mm construction steel with antistatic powder coating. Adjustable in 50 mm height steps within ESD vertical uprights.

Manufactured by Rtwork.

Technical specification
PRODUCT CODE RT-PP/ESD/180/60 RT-PP/ESD/120/60 → RT-PP/ESD/150/60 → RT-PP/ESD/200/60 →
DEDICATED TABLE WIDTH (mm) 180 120 150 200
WIDTH (mm) 1700 1100 1400 1900
HEIGHT (mm) 598 598 598 598
WEIGHT (kg) 8.7 5.8 7.2 10.1
MAX LOAD (kg/m²) 25 25 25 25
HEIGHT ADJUSTMENT RANGE (mm) MANUAL 50 mm STEP MANUAL 50 mm STEP MANUAL 50 mm STEP MANUAL 50 mm STEP
RASTER OF BOTTOMS (mm) 38 38 38 38
HOLE DIMENSIONS (mm) 10x10 10x10 10x10 10x10
SHEET THICKNESS (mm) 1 1 1 1
ESD YES YES YES YES
COLOR RAL 7035 (LIGHT GREY), RAL 9005 (BLACK) RAL 7035 (LIGHT GREY), RAL 9005 (BLACK) RAL 7035 (LIGHT GREY), RAL 9005 (BLACK) RAL 7035 (LIGHT GREY), RAL 9005 (BLACK)
MATERIAL Construction Steel Construction Steel Construction Steel Construction Steel
