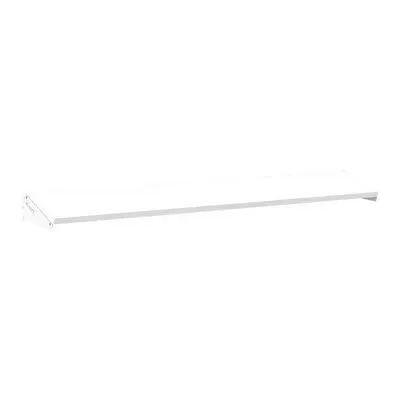

ESD Full Width Shelf Steel – 200 mm

ESD full width shelf with steel powder coated antistatic surface. Width 1940 mm, depth 300 mm, tilt angle 21°. For 200 mm workstation. Max load 20 kg.

Code
Manufacturer
Weight (kg)7.7
Width (mm)1940
Depth (mm)300
Max Load (kg)20
Height Adjustment Range (mm)Manual 50 mm step
Sheet Thickness (mm)1 (shelf), 2.5 (hacks)
MaterialConstruction Steel
ColorRAL 7035 (Light Grey), RAL 9005 (Black)
ESDYES
Ask about price
SKU: RT-SF/ESD/200/30/T Category:
Description

The ESD Full Width Steel Shelf features a steel surface with antistatic powder coating, providing ESD protection with high mechanical durability. The shelf has a 21° tilt angle, making components easily accessible during assembly and inspection operations.

Compatible with ESD vertical uprights, adjustable in 50 mm height steps. Compatible with LED lighting accessories.

Manufactured by Rtwork.

Technical specification
PRODUCT CODE RT-SF/ESD/200/30/T RT-SF/ESD/120/30/T → RT-SF/ESD/150/30/T → RT-SF/ESD/180/30/T →
DEDICATED TABLE WIDTH (mm) 200 120 150 180
WIDTH (mm) 1940 1140 1440 1740
DEPTH (mm) 300 300 300 300
WEIGHT (kg) 7.7 4.7 5.7 6.7
MAX LOAD (kg) 20 20 20 20
HEIGHT ADJUSTMENT RANGE (mm) MANUAL 50 mm STEP MANUAL 50 mm STEP MANUAL 50 mm STEP MANUAL 50 mm STEP
TILT ANGLE (°) 21 21 21 21
SHEET THICKNESS – HACKS (mm) 2.5 2.5 2.5 2.5
SHEET THICKNESS – SHELF (mm) 1 1 1 1
ESD YES YES YES YES
COLOR RAL 7035 (LIGHT GREY), RAL 9005 (BLACK) RAL 7035 (LIGHT GREY), RAL 9005 (BLACK) RAL 7035 (LIGHT GREY), RAL 9005 (BLACK) RAL 7035 (LIGHT GREY), RAL 9005 (BLACK)
MATERIAL Construction Steel Construction Steel Construction Steel Construction Steel
