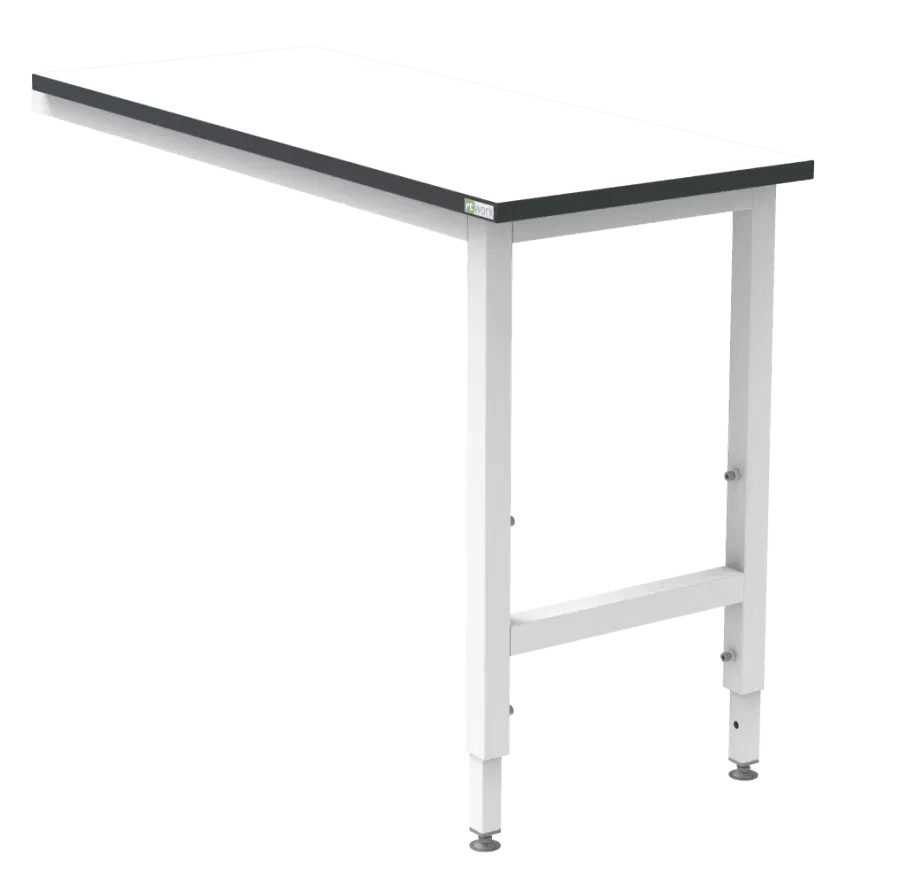

ESD worktable add-on manual H-type RT-H/M/ESD/120/50/ADD 1200x500 mm
Click to enlarge
ESD Workbench – Electric L-Type HD 2000×900 mm Ergonomic
ESD Workbench – Electric L-Type HD 2000×900 mm Ergonomic
Back to products
ESD Worktable Add-On – Manual L-Type 1200×500 mm
ESD Worktable Add-On – Manual L-Type 1200×500 mm

ESD Worktable Add-On – Manual H-Type 1200×500 mm

ESD worktable add-on, H-type, manual height adjustment, rectangular tabletop 25 mm. Width 1200 mm, depth 500 mm. Height range 750–1100 mm in 50 mm steps. Max load 150 kg.

Code
Manufacturer
Weight (kg)25
Width (mm)1200
Depth (mm)500
Max Load (kg)150
Type of Height Adjustment
Height Adjustment Range (mm)750 – 1100
Select TabletopRectangular
Type of GlidesSelf-levelling
Tabletop Materialdissipative, Double sided antistatic, melamine layer 25 mm, with graphite additive
Ground Resistance (Ω)10⁴ – 10⁸
Profile Dimension (mm)40×40×1.5 / 30×30×1.5
MaterialConstruction Steel
ColorRAL 7035 (Light Grey), RAL 9005 (Black)
ESDYES
Ask about price
SKU: RT-H/M/ESD/120/50/ADD Category:
Description

The ESD worktable add-on H-type is designed to extend existing H-type workbench configurations while maintaining full electrostatic discharge compliance. The ESD Worktable Add-On (H-Type) extends an existing ESD workbench, providing additional work surface. Requires a front brace (profile 40×40 with mounting holes) on the base table for installation.

Manual height adjustment in 50 mm steps, range 750–1100 mm. Double-sided antistatic, dissipative tabletop (25 mm, melamine-covered). Max load 150 kg. Browse all ESD workstations in our catalog.

Manufactured by Rtwork.

Technical specification
PRODUCT CODE RT-H/M/ESD/120/50/ADD
WIDTH (mm) 1200
DEPTH (mm) 500
WEIGHT (kg) 25
MAX LOAD (kg) 150
TYPE OF HEIGHT ADJUSTMENT MANUAL 50 mm STEP
HEIGHT ADJUSTMENT RANGE (mm) 750 – 1100
PROFILE DIMENSION (mm) 40×40×1.5 / 30×30×1.5
SHEET THICKNESS – TABLETOP FIXING (mm) 1.5
ESD YES
COLOR RAL 7035 (Light Grey), RAL 9005 (Black)
MATERIAL Construction Steel
TYPE OF GLIDES Self-levelling
RESISTANCE TABLETOP – GROUNDING (Ohm) 104 – 108
RESISTANCE TABLE FRAME (Ohm) 104 – 108
ADDITIONAL NOTE Requires front brace (profile 40×40 with mounting holes) on base table
COMPLIANCE WITH STANDARDS ANSI/ESD S.20.20:2014, PN-EN 61340-5-1:2024, PN-EN ISO 9001:2015, PN-EN ISO 3834-2:2021, PN-EN 1090-1:2009+A1:2011
