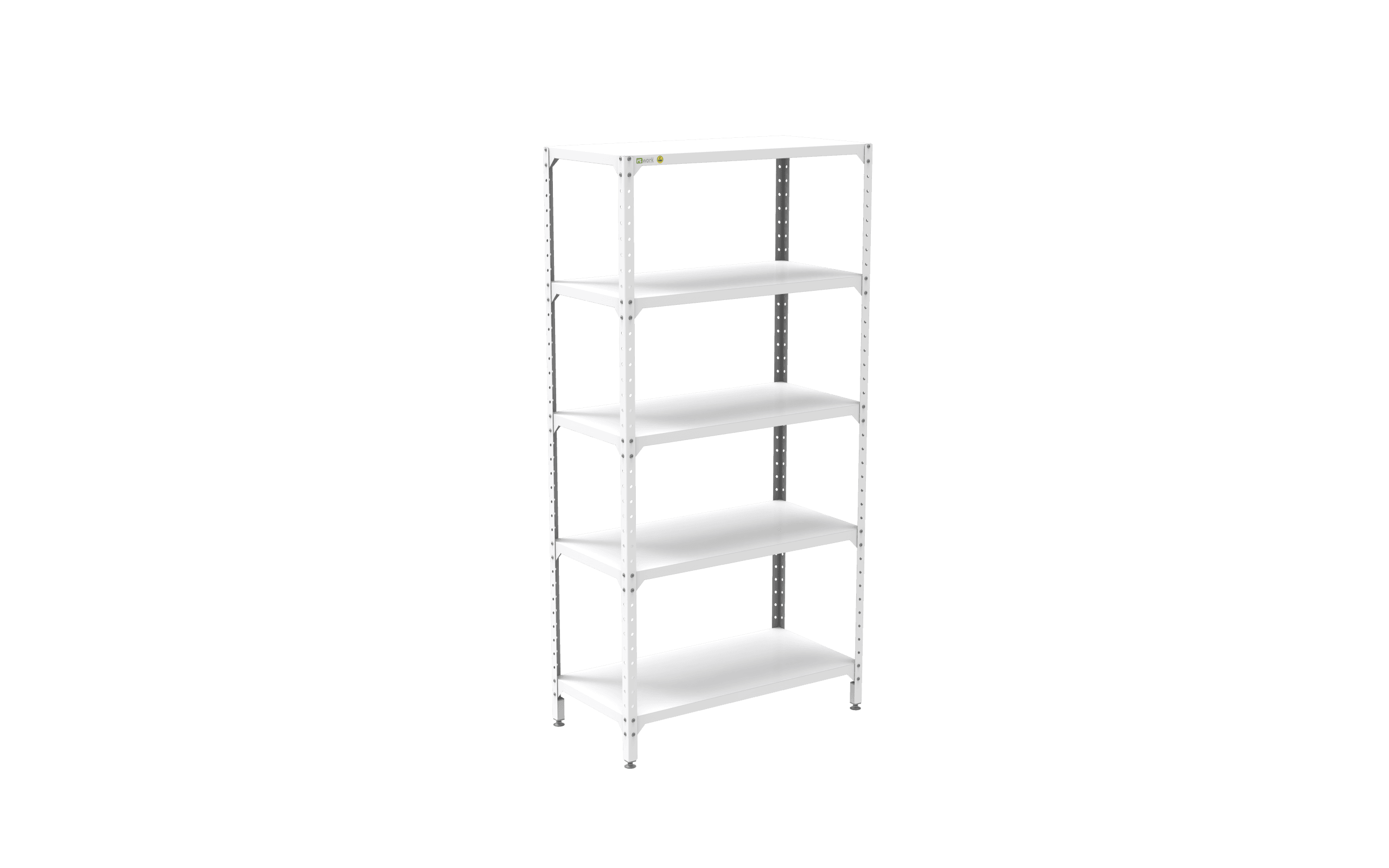

ESD Bolt Assembled Rack – Steel Shelf 5S 2000×1000×500 mm
ESD Bolt Assembled Rack – Steel Shelf 5S 2000×1000×500 mm. Height 2000 mm, width 1000 mm, depth 500 mm. 5 steel shelves, max load 50 kg per shelf. Weight 36 kg. ESD.
| Code | RT-RCBA/ESD/200/100/5S/T |
|---|---|
| Manufacturer | Rtwork |
| Weight (kg) | 36 |
| Height (mm) | 2000 |
| Width (mm) | 1000 |
| Depth (mm) | 500 |
| Number of Shelves | 5 |
| Max Load per Shelf (kg) | 50 |
| Shelf Thickness (mm) | 1 |
| Sheet Thickness (mm) | 1 |
| Type of Glides | Self-levelling |
| Shelf Material | Steel |
| Material | Construction Steel |
| Color | RAL 7035 (Light Grey), RAL 9005 (Black) |
| ESD | YES |
Description
The ESD bolt assembled rack steel shelf is designed for safe storage and organization of electrostatic sensitive components with flexible assembly in production environments. The ESD Bolt Assembled Rack – Steel Shelf 5S 2000×1000×500 mm is an ESD-safe storage rack designed for electronics manufacturing environments. Bolt assembled construction from construction steel with antistatic painted steel shelves. 5 shelves with max load 50 kg each. Self-levelling glides. Ground resistance 10⁴ – 10⁸ Ω. Compliant with ANSI/ESD S.20.20:2014 and PN-EN 61340-5-1:2024. Browse all ESD racks in our catalog.
Manufactured by Rtwork.
Technical specification
| PRODUCT CODE | RT-RCBA/ESD/200/100/5S/T | RT-RCBA/ESD/200/80/5S/T → | RT-RCBA/ESD/200/120/5S/T → |
|---|---|---|---|
| HEIGHT (mm) | 2000 | 2000 | 2000 |
| WIDTH (mm) | 1000 | 800 | 1200 |
| DEPTH (mm) | 500 | 500 | 500 |
| WEIGHT (kg) | 36 | 30 | 42 |
| MAX LOAD – 1 SHELF (kg) | 50 | 50 | 50 |
| NUMBER OF SHELVES | 5 | 5 | 5 |
| THICKNESS OF SHELF (mm) | 1 | 1 | 1 |
| TYPE OF HEIGHT ADJUSTMENT | MANUAL 50 mm STEP | MANUAL 50 mm STEP | MANUAL 50 mm STEP |
| SHEET THICKNESS – SHELF (mm) | 1 | 1 | 1 |
| SHEET THICKNESS – LEGS (mm) | 1.5 | 1.5 | 1.5 |
| TYPE OF GLIDES | Self-levelling | Self-levelling | Self-levelling |
| ESD | YES | YES | YES |
| COLOR | RAL 7035 (Light Grey), RAL 9005 (Black) | RAL 7035 (Light Grey), RAL 9005 (Black) | RAL 7035 (Light Grey), RAL 9005 (Black) |
| MATERIAL | Construction Steel | Construction Steel | Construction Steel |
| GROUND RESISTANCE (Ω) | 10⁴ – 10⁸ | 10⁴ – 10⁸ | 10⁴ – 10⁸ |
| COMPLIANCE WITH STANDARDS | ANSI/ESD S.20.20:2014, PN-EN 61340-5-1:2024, PN-EN ISO 9001:2015, PN-EN ISO 3834-2:2021, PN-EN 1090-1:2009+A1:2011 | ANSI/ESD S.20.20:2014, PN-EN 61340-5-1:2024, PN-EN ISO 9001:2015, PN-EN ISO 3834-2:2021, PN-EN 1090-1:2009+A1:2011 | ANSI/ESD S.20.20:2014, PN-EN 61340-5-1:2024, PN-EN ISO 9001:2015, PN-EN ISO 3834-2:2021, PN-EN 1090-1:2009+A1:2011 |
| DOWNLOAD PRODUCT SHEET | ESD-BOLD-ASSEMBLED-RACK-1.pdf ↓ | ESD-BOLD-ASSEMBLED-RACK-1.pdf ↓ | ESD-BOLD-ASSEMBLED-RACK-1.pdf ↓ |
