ESD high cabinet board shelf RT-CA/ESD/200/100/4S/W 2000x1000x500 mm
ESD High Cabinet – Board Shelf 4S 2000×1000×500 mm

ESD High Cabinet – Board Shelf 4S 2000×800×500 mm

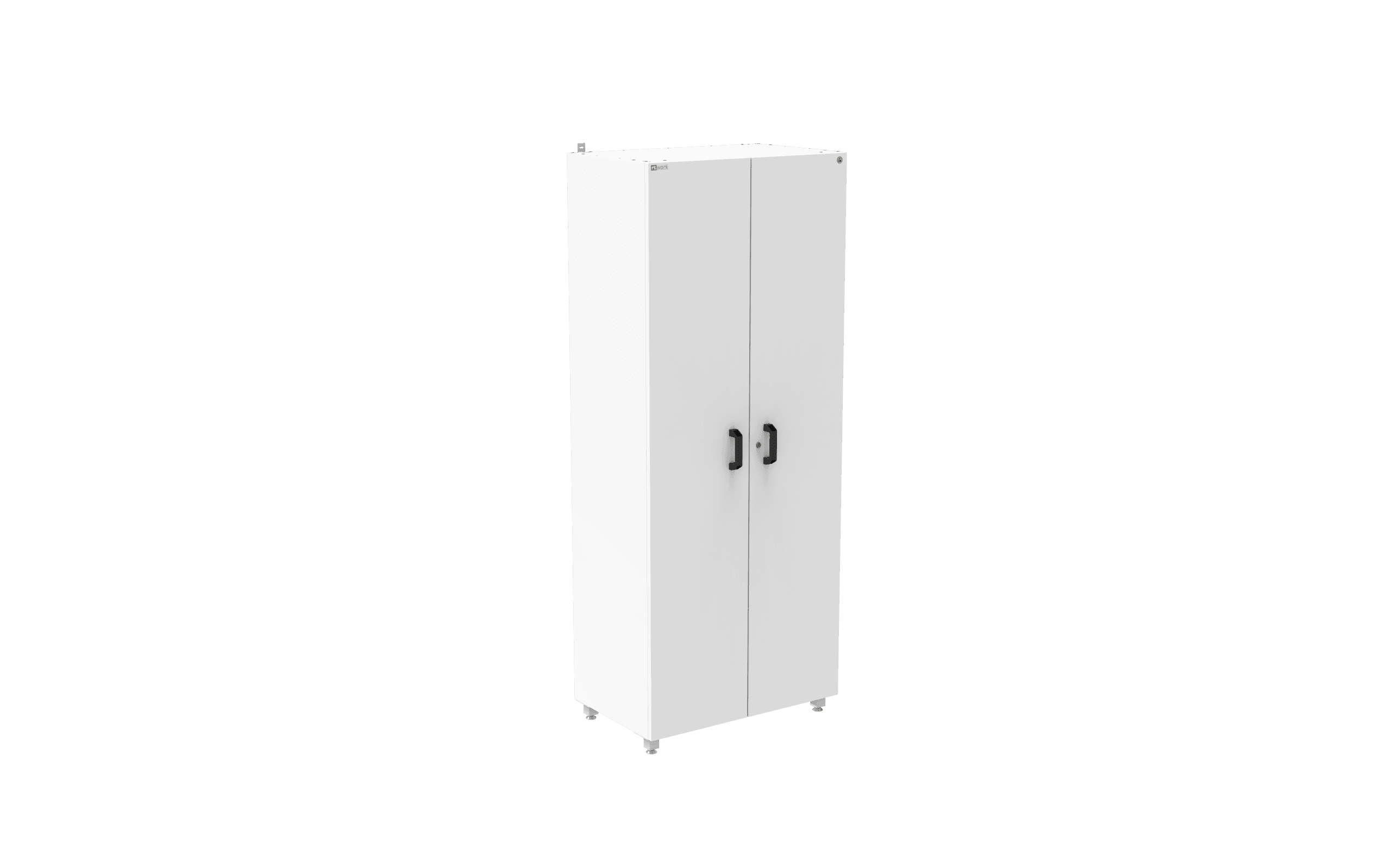

ESD High Cabinet – Board Shelf 4S 2000×800×500 mm. Height 2000 mm, width 800 mm, depth 500 mm. 4 board shelves, max load 50 kg per shelf. Weight 94 kg. ESD.

Code
Manufacturer
Weight (kg)94
Height (mm)2000
Width (mm)800
Depth (mm)500
Number of Shelves4
Number of Doors2
Door LockYES
Shelf Thickness (mm)25
Sheet Thickness (mm)1
Type of GlidesSelf-levelling
ColorRAL 7035 (Light Grey), RAL 9005 (Black)
ESDYES
1000 1200 800
Board Steel
Ask about price
SKU: RT-CA/ESD/200/80/4S/W Category:
Description

The ESD High Cabinet – Board Shelf 4S 2000×800×500 mm is an ESD-safe storage solution designed for sensitive electronic component environments. Constructed from construction steel with dissipative board shelves (25 mm melamine-covered), it provides reliable electrostatic discharge protection. Features manual shelf height adjustment in 75 mm steps, lockable doors, and self-levelling glides. Ground resistance 10⁴ – 10⁸ Ω. Compliant with ANSI/ESD S.20.20:2014 and PN-EN 61340-5-1:2024.

Manufactured by Rtwork.

Technical specification
PRODUCT CODE RT-CA/ESD/200/80/4S/W RT-CA/ESD/200/100/4S/W → RT-CA/ESD/200/120/4S/W →
HEIGHT (mm) 2000 2000 2000
WIDTH (mm) 800 1000 1200
DEPTH (mm) 500 500 600
WEIGHT (kg) 94 109 124
MAX LOAD – 1 SHELF (kg) 50 50 50
NUMBER OF SHELVES 4 4 4
NUMBER OF DOORS 2 2 2
DOOR LOCK YES YES YES
TYPE OF HEIGHT ADJUSTMENT MANUAL 75 mm STEP MANUAL 75 mm STEP MANUAL 75 mm STEP
THICKNESS OF SHELF (mm) 25 25 25
SHEET THICKNESS (mm) 1 1 1
TYPE OF GLIDES Self-levelling Self-levelling Self-levelling
ESD YES YES YES
COLOR RAL 7035 (Light Grey), RAL 9005 (Black) RAL 7035 (Light Grey), RAL 9005 (Black) RAL 7035 (Light Grey), RAL 9005 (Black)
MATERIAL Construction Steel + dissipative board, Double sided antistatic, melamine layer 25 mm, with graphite additive Construction Steel + dissipative board, Double sided antistatic, melamine layer 25 mm, with graphite additive Construction Steel + dissipative board, Double sided antistatic, melamine layer 25 mm, with graphite additive
GROUND RESISTANCE (Ω) 10⁴ – 10⁸ 10⁴ – 10⁸ 10⁴ – 10⁸
COMPLIANCE WITH STANDARDS ANSI/ESD S.20.20:2014, PN-EN 61340-5-1:2024, PN-EN ISO 9001:2015, PN-EN ISO 3834-2:2021, PN-EN 1090-1:2009+A1:2011 ANSI/ESD S.20.20:2014, PN-EN 61340-5-1:2024, PN-EN ISO 9001:2015, PN-EN ISO 3834-2:2021, PN-EN 1090-1:2009+A1:2011 ANSI/ESD S.20.20:2014, PN-EN 61340-5-1:2024, PN-EN ISO 9001:2015, PN-EN ISO 3834-2:2021, PN-EN 1090-1:2009+A1:2011
DOWNLOAD PRODUCT SHEET ESD-HIGH-CABINET-1.pdf ↓ ESD-HIGH-CABINET-1.pdf ↓ ESD-HIGH-CABINET-1.pdf ↓
