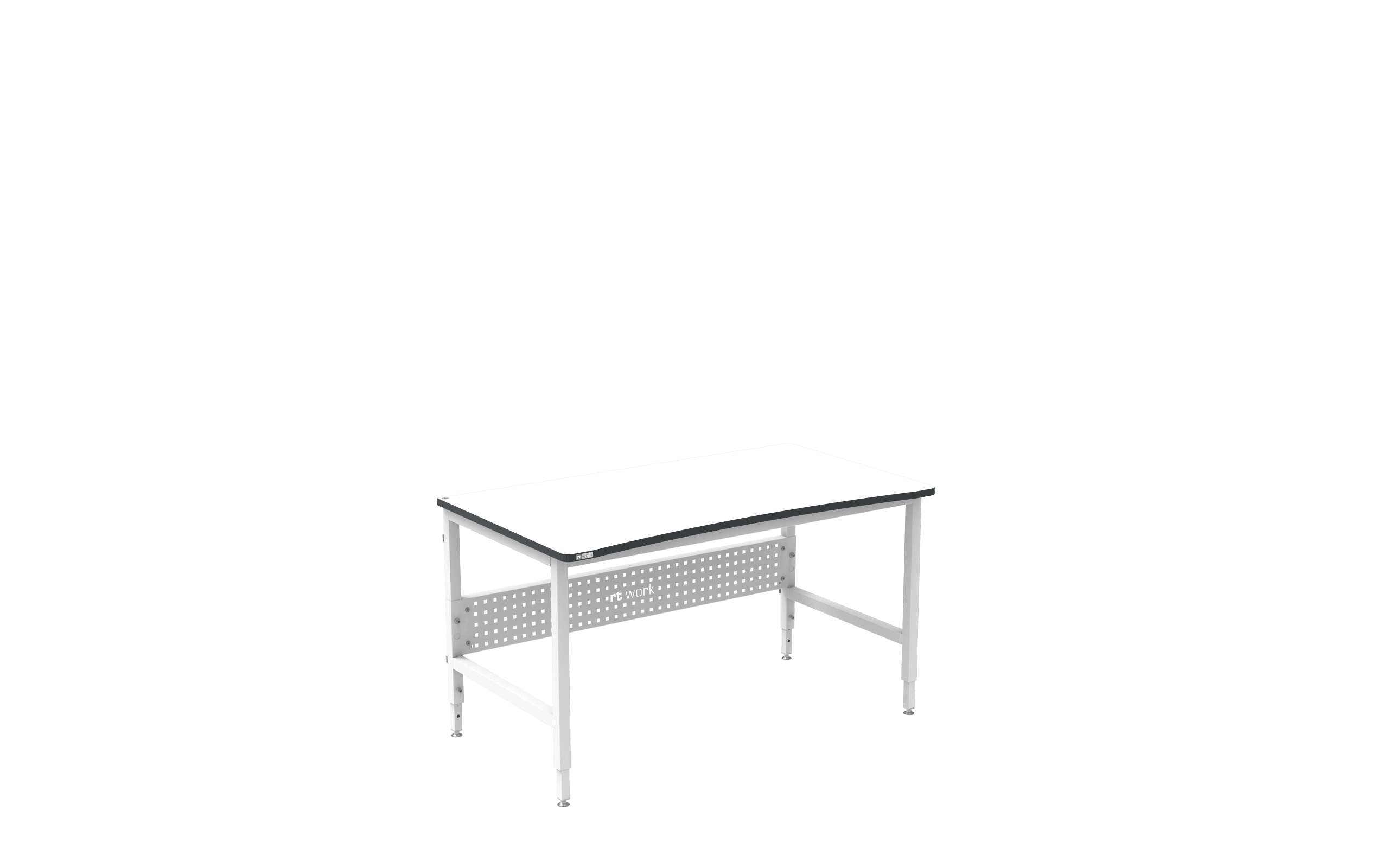

ESD Workbench – Manual H-Type 1500×800 mm Ergonomic

ESD workbench with manual height adjustment, H-Type frame, ergonomic tabletop 25 mm. Width 1500 mm, depth 800 mm. Height range 750 – 1100 mm in 50 mm steps. Max load 300 kg. Construction steel, ESD.

Code
Manufacturer
Weight (kg)48
Width (mm)1500
Depth (mm)800
Max Load (kg)300
Type of Height Adjustment
Height Adjustment Range (mm)750 – 1100
Select TabletopErgonomic
Type of GlidesSelf-levelling
Tabletop Materialdissipative, Double sided antistatic, melamine layer 25 mm, with graphite additive
Ground Resistance (Ω)10⁴ – 10⁸
Profile Dimension (mm)40×40×1.5 / 30×30×1.5
MaterialConstruction Steel
ColorRAL 7035 (Light Grey), RAL 9005 (Black)
ESDYES
1200 1500 1800 2000
700 800 900
Ergonomic Rectangular
Ask about price
SKU: RT-H/M/ESD/150/80/E Category:
Description

The ESD workbench manual H-type ergonomic is designed for production environments where static charge control and ergonomic positioning are both required.

The ESD Workbench with manual height adjustment (H-Type) is a robust and versatile workstation designed for electronics assembly, inspection, and repair operations in ESD-controlled environments.

The H-Type frame provides a stable, open structure suitable for mounting the full range of ESD accessories including vertical uprights, shelves, perforated panels, power strips, and containers. Height is adjusted manually in 50 mm steps within a range of 750 – 1100 mm, allowing ergonomic setup for both sitting and standing work.

The ergonomic double-sided antistatic, dissipative tabletop with graphite additive (25 mm, melamine-covered) ensures effective ESD protection with ground resistance 10⁴–10⁸ Ω. Self-levelling glides for stable positioning on uneven floors. Max load 300 kg. Browse all ESD workstations in our catalog.

Manufactured by Rtwork.

Technical specification
PRODUCT CODE RT-H/M/ESD/150/80/E RT-H/M/ESD/150/80 → RT-H/M/ESD/120/80/E → RT-H/M/ESD/180/80/E →
TABLETOP TYPE Ergonomic Rectangular Ergonomic Ergonomic
WIDTH (mm) 1500 1500 1200 1800
DEPTH (mm) 800 800 800 800
WEIGHT (kg) 48 48 41 54
MAX LOAD (kg) 300 300 300 300
TYPE OF HEIGHT ADJUSTMENT MANUAL 50 mm STEP MANUAL 50 mm STEP MANUAL 50 mm STEP MANUAL 50 mm STEP
HEIGHT ADJUSTMENT RANGE (mm) 750 – 1100 750 – 1100 750 – 1100 750 – 1100
PROFILE DIMENSION (mm) 40×40×1.5 / 30×30×1.5 40×40×1.5 / 30×30×1.5 40×40×1.5 / 30×30×1.5 40×40×1.5 / 30×30×1.5
SHEET THICKNESS – BOTTOM PANEL (mm) 1.5 1.5 1.5 1.5
SHEET THICKNESS – TABLETOP FIXING (mm) 1.5 1.5 1.5 1.5
SHEET THICKNESS – UPRIGHT FIXING (mm) 2 2 2 2
TABLETOP Double sided antistatic, dissipative, with graphite additive, melamine layer 25 mm Double sided antistatic, dissipative, with graphite additive, melamine layer 25 mm Double sided antistatic, dissipative, with graphite additive, melamine layer 25 mm Double sided antistatic, dissipative, with graphite additive, melamine layer 25 mm
TYPE OF GLIDES Self-levelling Self-levelling Self-levelling Self-levelling
GROUND RESISTANCE (Ω) 10⁴ – 10⁸ 10⁴ – 10⁸ 10⁴ – 10⁸ 10⁴ – 10⁸
ESD YES YES YES YES
COLOR RAL 7035 (Light Grey), RAL 9005 (Black) RAL 7035 (Light Grey), RAL 9005 (Black) RAL 7035 (Light Grey), RAL 9005 (Black) RAL 7035 (Light Grey), RAL 9005 (Black)
MATERIAL Construction Steel Construction Steel Construction Steel Construction Steel
COMPLIANCE WITH STANDARDS ANSI/ESD S.20.20:2014, PN-EN 61340-5-1:2024, PN-EN ISO 9001:2015, PN-EN ISO 3834-2:2021, PN-EN 1090-1:2009+A1:2011 ANSI/ESD S.20.20:2014, PN-EN 61340-5-1:2024, PN-EN ISO 9001:2015, PN-EN ISO 3834-2:2021, PN-EN 1090-1:2009+A1:2011 ANSI/ESD S.20.20:2014, PN-EN 61340-5-1:2024, PN-EN ISO 9001:2015, PN-EN ISO 3834-2:2021, PN-EN 1090-1:2009+A1:2011 ANSI/ESD S.20.20:2014, PN-EN 61340-5-1:2024, PN-EN ISO 9001:2015, PN-EN ISO 3834-2:2021, PN-EN 1090-1:2009+A1:2011
DOWNLOAD PRODUCT SHEET H-TYPE-1500-ESD.pdf ↓ H-TYPE-1500-ESD.pdf ↓ H-TYPE-1200-ESD.pdf ↓ H-TYPE-1800-ESD.pdf ↓
Accessories

Code: RT-FT/ESD

ESD Footrest

ESD footrest 604×360 mm, working surface 286×490 mm. Height adjustable in 50 mm steps. Max load 40 kg. ESD mat surface.

Code: RT-BTH/ESD

ESD Brake for Cart

ESD brake for tool balancer cart. Knob diameter 25 mm, height 40 mm. Locks cart position on perforated panel.

Code: RT-BT/ESD/6/5

ESD Tool Balancer Cart

ESD tool balancer cart 60×52 mm. For mounting tool balancers on perforated panel. Hole diameter 8 mm. Max load 5 kg.

Code: RT-SFK/VU/ESD/23/33

ESD Articulated Keyboard Shelf

ESD articulated keyboard shelf mounted on upright frame. Width 230 mm, tilt -85°/0°, depth adjustable 55–277 mm. Max load 5 kg.

Code: RT-SF/ESD/50/35/K

ESD Keyboard Shelf – 500 mm

ESD keyboard shelf 500×351 mm. For 1200 mm workstations with suspended container under tabletop. Max load 20 kg.

Code: RT-SF/ESD/70/35/K

ESD Keyboard Shelf – 700 mm

ESD keyboard shelf 700×351 mm. For workstations without suspended container. Max load 20 kg. Compatible with all table widths.

Code: RT-DH/ESD/23/33

ESD Articulated Holder

ESD articulated holder for documents, tablets, or small displays. Width 230 mm, height 330 mm, depth adjustable 55–277 mm. Max load 5 kg.

Code: RT-MH/ESD/5/12

ESD Monitor Holder

ESD monitor holder for LCD displays. Depth adjustable 55–277 mm, tilt -5°/+15°. Height adjustable in 50 mm steps. Max load 5 kg.

Code: RT-PCH/ESD/22/52/EL

ESD PC Holder for Electric Tables

ESD PC holder dedicated for electric height adjustment workstations. Width 225 mm, depth 520 mm, height 500 mm. Max load 10 kg.

Code: RT-PCH/ESD/22/46

ESD PC Holder

ESD PC holder for manual height adjustment workstations. Width 225 mm, depth 463 mm. Height adjustable in 38 mm steps. Max load 10 kg.

ESD mobile container 4 lockable drawers RT-DC/ESD/40/65-4
Code: RT-DC/ESD/40/65-4/S

ESD Mobile Container – 4 Lockable Drawers Silent

ESD mobile container with 4 lockable drawers. Width 400 mm, depth 505 mm, height 659 mm. Max load 75 kg. Silent closing system on all drawers.

ESD mobile container 4 lockable drawers RT-DC/ESD/40/65-4
Code: RT-DC/ESD/40/65-4

ESD Mobile Container – 4 Lockable Drawers

ESD mobile container with 4 lockable drawers. Width 400 mm, depth 505 mm, height 659 mm. Max load 75 kg.

Code: RT-DU/ESD/40/44-3/S

ESD Suspended Container – 3 Lockable Drawers Silent

ESD suspended container with 3 lockable drawers. Width 400 mm, depth 540 mm, height 446 mm. Max load 50 kg. Silent closing system on all drawers.

Code: RT-DU/ESD/40/44-3

ESD Suspended Container – 3 Lockable Drawers

ESD suspended container with 3 lockable drawers. Width 400 mm, depth 540 mm, height 446 mm. Max load 50 kg.

Code: RT-DU/ESD/40/30-2/S

ESD Suspended Container – 2 Lockable Drawers Silent

ESD suspended container with 2 lockable drawers. Width 400 mm, depth 540 mm, height 306 mm. Max load 50 kg. Silent closing system on all drawers.

Code: RT-DU/ESD/40/30-2

ESD Suspended Container – 2 Lockable Drawers

ESD suspended container with 2 lockable drawers. Width 400 mm, depth 540 mm, height 306 mm. Max load 50 kg.

Code: RT-DU/ESD/40/16-1/S

ESD Suspended Container – 1 Lockable Drawer Silent

ESD suspended container with 1 lockable drawer. Width 400 mm, depth 540 mm, height 160 mm. Max load 25 kg. Silent closing system on all drawers.

Code: RT-DU/ESD/40/16-1

ESD Suspended Container – 1 Lockable Drawer

ESD suspended container with 1 lockable drawer. Width 400 mm, depth 540 mm, height 160 mm. Max load 25 kg.

Code: RT-WH/ESD/60/15

ESD Half Width Wire Holder – 1500 mm

ESD half width wire holder for cable management. Width 600 mm, depth 75 mm, height 150 mm. For 1500 mm workstation. Max load 5 kg.

Code: RT-WH/ESD/130/15

ESD Full Width Wire Holder – 1500 mm

ESD full width wire holder for cable management. Width 1300 mm, depth 75 mm, height 150 mm. For 1500 mm workstation. Max load 10 kg.

Code: RT-LL/120

ESD LED Lamp – 1500 mm

ESD LED workstation lamp. Length 1160 mm, power 40W, 230V, 4000K, IP65, IK08. For 1500 mm workstation.

Code: RT-PW/ESD/75/10/8F/HF

ESD Half Width Power Strip – 1500 mm

ESD half width power strip. Housing 678×100×45 mm. 8 sockets 230V FRENCH. For 1500 mm workstation. Protection 16A.

Code: RT-PW/ESD/75/10/6F/HF

ESD Half Width Power Strip – 1500 mm

ESD half width power strip. Housing 678×100×45 mm. 6 sockets 230V FRENCH. For 1500 mm workstation. Protection 16A.

Code: RT-PW/ESD/75/10/8S/HS

ESD Half Width Power Strip – 1500 mm

ESD half width power strip. Housing 678×100×45 mm. 8 sockets 230V SCHUKO. For 1500 mm workstation. Protection 16A.

Code: RT-PW/ESD/75/10/6S/HS

ESD Half Width Power Strip – 1500 mm

ESD half width power strip. Housing 678×100×45 mm. 6 sockets 230V SCHUKO. For 1500 mm workstation. Protection 16A.

Code: RT-BR/ESD/75/7

ESD Half Width Bin Rail – 1500 mm

ESD half width bin rail for small parts bins. Width 717 mm, height 70 mm, depth 25 mm. For 1500 mm workstation. Max load 5 kg.

Code: RT-PP/ESD/75/30

ESD Half Width Low Perforated Panel – 1500 mm

ESD half width low perforated panel. Width 678 mm, height 298 mm. Hole 10×10 mm, raster 38 mm. For 1500 mm workstation. Max load 25 kg/m².

Code: RT-PP/ESD/75/60

ESD Half Width High Perforated Panel – 1500 mm

ESD half width high perforated panel. Width 678 mm, height 598 mm. Hole 10×10 mm, raster 38 mm. For 1500 mm workstation. Max load 25 kg/m².

Code: RT-SF/ESD/75/30/T

ESD Half Width Shelf Steel – 1500 mm

ESD half width shelf with steel powder coated antistatic surface. Width 650 mm, depth 300 mm, tilt angle 21°. For 1500 mm workstation. Max load 20 kg.

Code: RT-SF/ESD/75/40/W

ESD Half Width Shelf Board – 1500 mm

ESD half width shelf with dissipative board tabletop. Width 740 mm, depth 400 mm, thickness 25 mm. For 1500 mm workstation. Max load 20 kg.

Code: RT-SF/ESD/75/30/W

ESD Half Width Shelf Board – 1500 mm

ESD half width shelf with dissipative board tabletop. Width 740 mm, depth 300 mm, thickness 25 mm. For 1500 mm workstation. Max load 20 kg.
